Description

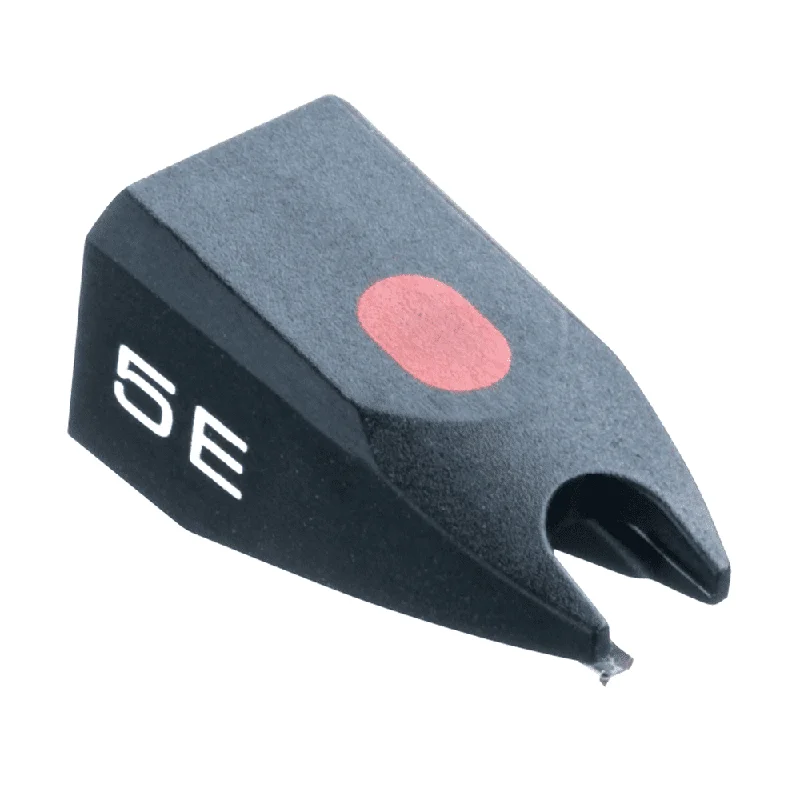

Replacement stylus, recommended for the following cartridge models: OM 5E, OMP 5E, OMB 5E, OMT 5E
All cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Features
- Replacement stylus found on numerous turntables
- Optimised sound reproduction
- Distortion-free playback
- Elliptical stylus profile
Technical Specifications
| Frequency Range | 20Hz – 25kHz |
| Tracking Ability at 315Hz | Typically 65µm |
| Compliance, Dynamic, Lateral | 20µm |
| Stylus Type | Elliptical |
| Stylus Tip Radius r / R | 8 / 18µm |
| Equivalent Stylus Tip Mass | 0.5mg |
| Tracking Force Range | 1.5 – 2.0g (15 – 20mN) |
| Recommended Tracking Force | 1.75g (17.5mN) |
| Tracking Angle | 20º |
| Stylus Colour | Black |
Manufacturer Site
- Ortofon
