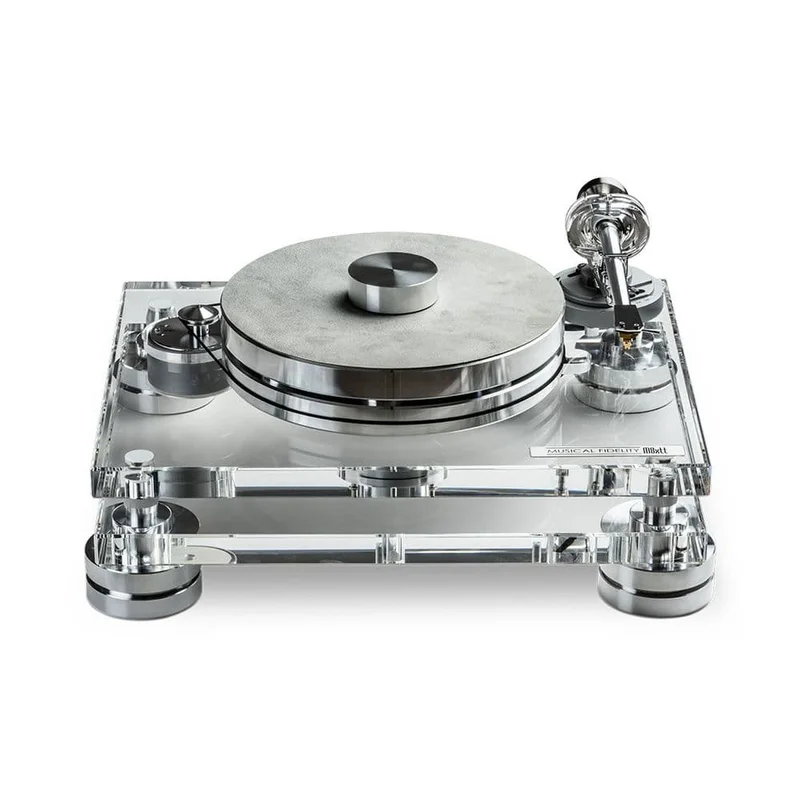

Musical Fidelity M8XTT Turntable

Description

A RADICAL CONCEPT

A high-End turntable with radical concepts and innovations originating from its legendary predecessor, the M1 from 2004!

The M8xTT turntable is not only a work of art but is also a well-designed machine, featuring even more expressive technical features in comparison to its predecessors. Combining high-mass and isolation design principles to produce a sound and technical performance capable of impressing any vinyl audiophile.

THE HIGHEST QUALITY

The M8xTT’s dual-layer plinth is made of non-resonant acrylic, mounted on four height-adjustable magnetic feet with Teflon spacers between the layers. The top layer houses the main bearing spindle and the tonearm mount for complete isolation from the stand-alone drive motor, which rests on the bottom plinth, isolated from the structure by a special foam material. The result is a turntable that effectively eliminates the transfer of resonances from the surrounding environment and from within itself.

UNIQUE MOTOR AND PLATTER

The drive motor is connected to the TPE-damped main platter by a silicon drive belt. The unique platter also boasts a dual-layer construction, joined together by aluminium inserts which effectively improve the flywheel effect as the platter begins to turn. This, in combination with the purpose-selected motor, which also features automatic speed changing between 33 and 45rpm, results in a turntable that is capable of exceptional rotational stability.

COMPLETELY NEW ULTRA LOW RESONANCE TONEARM

The 10-inch tonearm features a conical aluminium tonearm tube and translucent acrylic bearing ring in a completely new, ultra-low resonance Musical Fidelity design. The tonearm has two counterweights and is fully VTA and azimuth adjustable, allowing it to be used with cartridges weighing 6 to 20g. To stop resonances, the counterweights are TPE damped.

Standard phono RCA outputs and balanced XLR connections are located on the back, providing you with the utmost versatility when selecting a phono preamplifier.

THE FINISHED PRODUCT

The M8xTT is a true high-end record player. Thanks to its use of mass-loaded materials as part of a decoupled chassis construction, it is capable of a rock-solid performance, so any connected pick-up cartridge can perform to its highest ability. Designed with the “Musical Fidelity sound” in mind, this is a worthy addition to any serious hi-fi system. For added convenience, the M8xTT is supplied with a leather platter mat and heavy aluminium record puck inside the packaging.

Specifications

• DRIVE PRINCIPLE: Perimeter Belt Drive

• SPEEDS: 33 & 45 RPM

• SPEED VARIANCE (33 RPM): 0.11 %

• SPEED VARIANCE (45 RPM): 0.10 %

• WOW AND FLUTTER (33 RPM): 0.05 %

• WOW AND FLUTTER (45 RPM): 0.04 %

• TURNTABLE SIGNAL TO NOISE RATIO: -78 dB

• MAIN BEARING|: Inverted Ceramic Ball

• MAIN PLATTER MATERIAL: Aluminium with TPE Lining

• MAIN PLATTER WEIGHT: 10.0 kg

• PLINTH MATERIAL: Acrylic

• TONEARM TYPE: Adjustable

• TONEARM MATERIAL: Aluminium

• EFFECTIVE TONEARM LENGTH: 254 mm

• OVERHANG: 16 mm

• EFFECTIVE TONEARM MASS: 17 g

• VTA ADJUSTMENT: Yes

• OUTPUT CONNECTION: 5-Pin Connector

• OUTPUT LEVEL: Phono Level

• EXTERNAL POWER SUPPLY RATING: 15V-800mA DC

• MAXIMUM POWER CONSUMPTION: 5 W

• DIMENSIONS (W X H X D): 533 x 245 x 413 mm

• WEIGHT: 31.50 kg
