Description
The AN300B MAX the newest amp from Melody Hifi in the AN series. The AN300B MAX is a integrated amplification and has a power output of 2x 8 Watts in Class A amplification. Only the best materials, like Mundorf Caps are used, which results in an unparalleled sound reproduction. The AN300B MAX is inside and outside improved to the highest at this moment available standard.
The AN300B MAX uses the famous and willing 300B Tube from Melody.

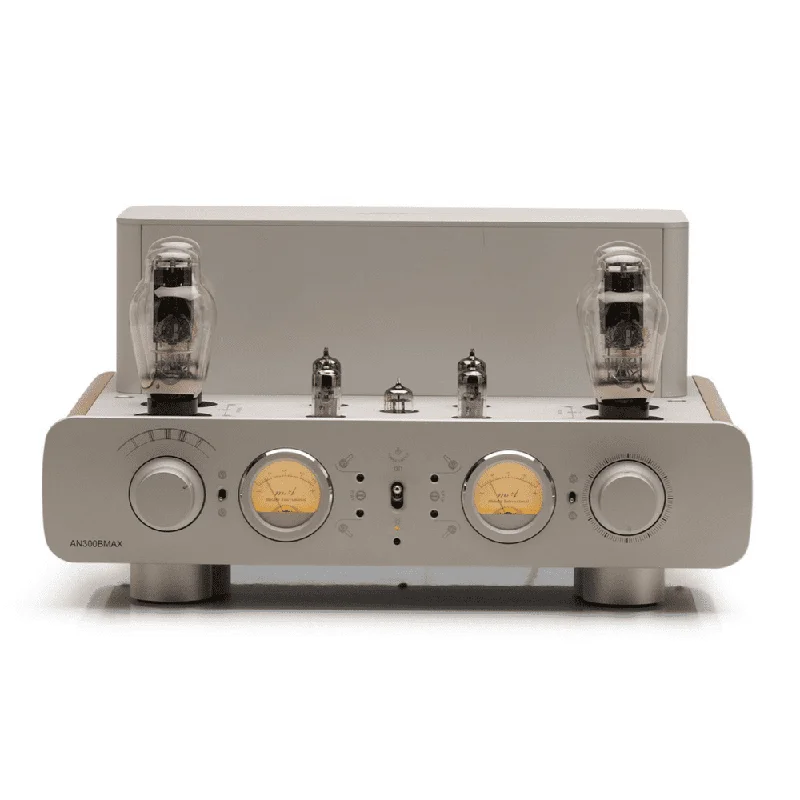

Melody AN300B MAX
Melody hifi is Hand-made construction with the finest point-to-point wiring. The Bias control is accessible on top of the amplifier panel with true ampere meter.
Every Melody amplifier has a Soft Start and time-delay circuit from 30 second.
Metal and removable tube guard cage
The solid remote control comes with volume plus and minus and a mute button. The mute has a pleasant fade out.
At the rear of the AN300B MAX you will find 4 RCA inputs and 1 XLR-Balanced input. The high-quality 4 and 8 ohm speaker connections can also be found here. The side panels are made of a nice piece of wood to give the amplifier its nice finish.
Technical Specifications
| POWER OUTPUT | 2x 21 watts class AB1 |
| NO. OF CHANNEL | 2 |
| SPEAKER TAPS | 4 & 8 ohms |
| LINE INPUT SENSITIVITY | 420 mV |
| INPUT IMPEDANCE | 100K ohms |
| FREQUENCY RESPONSE | 20Hz to 30,000Hz |
| TOTAL HARMONIC DISTORTION | 1% |
| SIGNAL TO NOISE RATIO | >88dB |
| VACUUM TUBES (8) | 2 x 300B 2 x 6SN7 1 x 274B |
| DIMENSIONS ( W X H X D) | 47.5 cm x 24.5cm x 39cm |
| WEIGHT
GUARANTEE GUARANTEE TUBES |
Net 40 kg
1000 days 6 months |
