Description

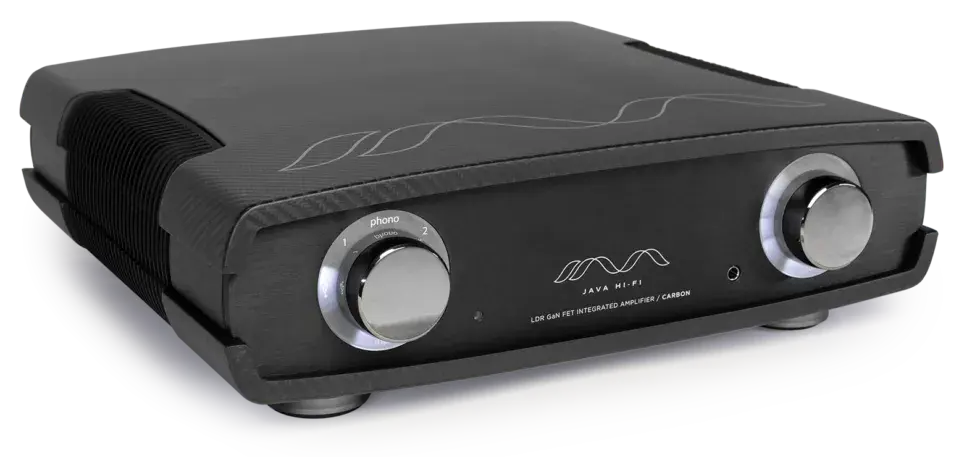

With a striking aesthetic that creates a powerful presence on any audio rack, the JAVA
CARBON Double Shot Integrated Amplifier features several notable innovations that elevate
the JAVA listening experience to new heights. These include:
Carbon fibre outer casework (9mm thick) for superior vibration damping and to
mitigate the influence of RFI and EMI on circuitry.
Enhanced sound quality from ETI Silver RCA connectors and ETI Research Kryo
binding posts.
IsoAcoustics Gaia IV feet for improved vibration isolation of circuit boards and other
internal components.
More than ever, the act of listening to music is one of lifes simple pleasures. A chance to escape from information overload and the distractive digital noise of our cluttered contemporary world. Against this backdrop, JAVA Hi-Fi has created a range of audio separates that deliver a deeply immersive listening experience, to capture the intangible, soulful essence of music.
The JAVA Hi-Fi range of audio components reproduce music with extraordinary realism. Subtle new details are revealed in familiar pieces of music, while voices and instruments are presented with a rich and life-like tone. Music flows effortlessly from the speakers, enveloping the listener in a broad and deep soundstage that takes you direct to the heart of the musical performance.
Exceptional audio performance is at the core of the JAVA Hi-Fi range. But the unique combination of cutting-edge technology and clean uncluttered aesthetics sets JAVA Hi-Fi apart.
With a feature-set perfectly tailored to the demands of the discerning audio enthusiast, the six-strong range of JAVA Hi-Fi amplifiers is available in Single Shot or Double Shot strengths.
Specifications
-
400 watts/8 ohms (800 watts/4 ohms)
-
LDR pre-amp stage and GaN FET power amp stage
-
Fully balanced dual mono topology
-
4 x pairs of XLR line-level inputs
-
2 x pairs of XLR outputs (fixed and variable)
-
High-resolution DAC (USB and coaxial S/PDIF inputs)
-
MM phono stage (RCA inputs)
-
Bluetooth aptX
-
1 x headphone output
-
Remote control for volume and source selection
DAC Specification :
- DAC Chips: Dual flagship Burr-Brown PCM1794As in monaural mode.
- Sampling Rates: PCM up to 192kHz inc DSD.
- Bit Rates: Up to 24-bit.
- Formats: Supports all formats inc DSD.
Measurements:
- Signal-to-Noise Ratio (SNR): 124dB (A-weighted).
- Residual Noise: 1.6uV (A-weighted).
- Dynamic Range (DNR): 122dB.
- Total Harmonic Distortion + Noise (THD+N): -110dB or 0.0003%.
- Frequency Response: DC (0Hz) to 22kHz @ 48kHz sample rate.
- Frequency Response: DC (0Hz) to 44kHz @ 96kHz sample rate.
- Frequency Response: DC (0Hz) to 88kHz @ 192kHz sample rate.
- Output Voltage: 2.5Vrms (+10.2dBu).
Other:
- Re-clocking: Crystek CCHD-575 oscillator — ultra-low clock jitter of 82fSec.
DAC Output stage:
- Uses OPA1612s.
- Low Noise Panasonic Resistors.
- Proprietary filtering topology.
MM Phono Specification :
- Input Impedance – 47K Ohm.
- Input Capacitance – 200pf load.
- Gain – 45dB signal gain (at 1KHz).
- The RIAA equalisation is achieved using a passive filter network.
- It achieves the RIAA curve to within 1dB throughout the audio band, with the addition of an anti rumble filter.
- High tolerance Japanese thin film resistors and German film capacitors are used throughout the design.
