Description

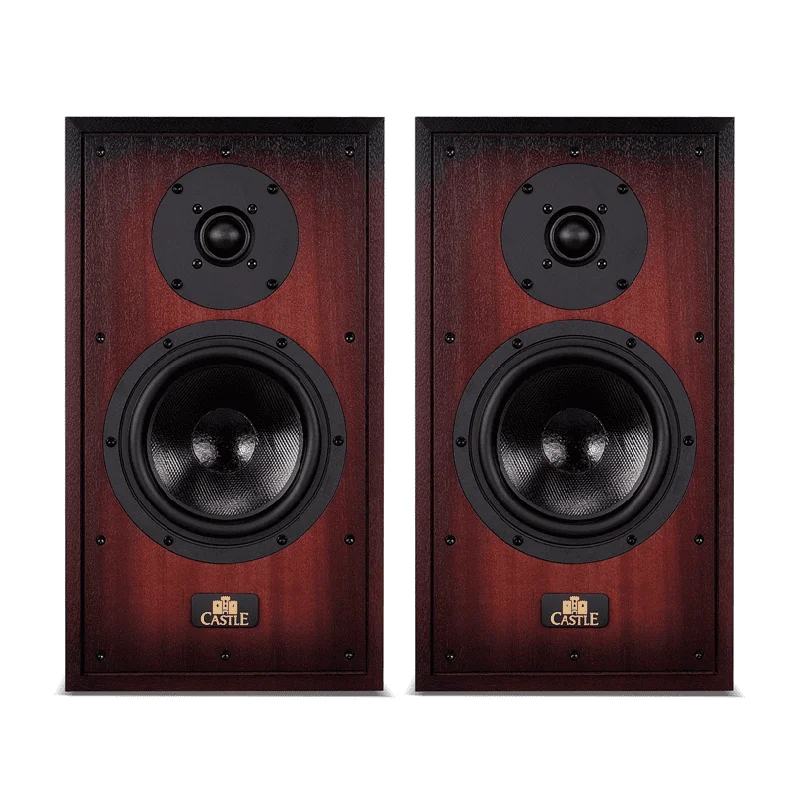

The Windsor Earl is equipped with an 6″ woofer, purposely-developed together with a 28mm textile dome tweeter, to perform seamlessly in a classic bookshelf / monitor styled cabinet. The drive units have all been engineered from the ground up, using cast alloy components, yet retaining the essential character through the use of new woven Polypropylene cones and glass-fibre voice coils.
The cabinet work is, as you would expect from a product bearing the Castle name, first class. The hand-selected, book-matched pairs of veneers are sourced from the original suppliers to ensure continuity in the Castle legacy. Our dedicated ‘handfinished’ team is trained to deliver the highest quality ‘furnituregrade’ finishes and build. No two pairs are the same!
Specifications
| General | Two-way standmount |
| Enclosure Type | Bass reflex, rear ported |
| Treble driver | 28mm microfibre dome |
| Mid/bass driver | 165mm woven polypropylene cone |
| Sensitivity (2.83V @ 1m) | 89dB |
| Impedance | 8 ohms nominal; 4.3 ohms minimum |
| Recommended amp power | 25-100W |
| Frequency response (+/-3dB) | 58Hz-22kHz |
| Bass Extension (-6dB) | 45Hz |
| Crossover frequency | 2.2kHz |
| Cabinet volume | 15.8L |
| Cabinet dimensions (HxWxD) | 430x240x260mm |
