Description

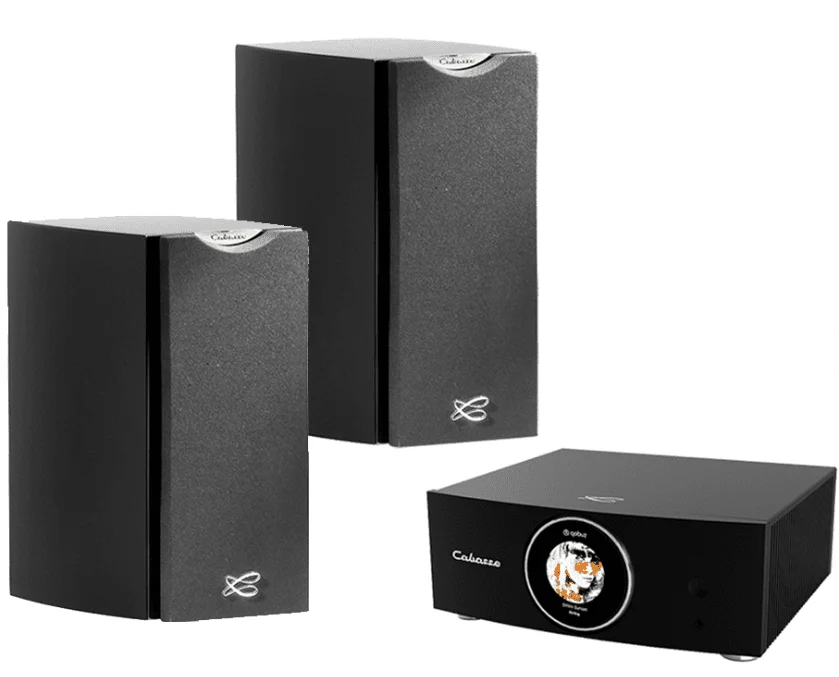

Minorca Speakers
Featuring Cabasses SCS (Spatially Coherent Source) technology, the MC40 range is aimed at all music lovers looking for a new high-fidelity experience. Cabasse invites you to discover a new world of precision, realism and soundstage spatialization. The ultra compact Minorca MC40, a 3-way speaker equipped with the BC10 coaxial midrange tweeter and a Duocell membrane woofer, allows you to reach a level of emotion only previously obtainable from large speakers.
Features
COAXIAL MIDRANGE TWEETER
Developed with the same innovative solutions used for the midrange-high sound reproduction of our THE Sphère flagship system, the BC10 adds depth and soundstage realism to the fidelity of the timbres, without artifice or auditory fatigue. A speaker that is unrivalled at this price level.
DUOCELL CONE WOOFERS
The 17 cm woofer of Minorca is fitted with a Duocell cone designed by Cabasse and manufactured with Cabasse robotics. The very light, but rigid and nicely damped membrane has an exponential profile and variable thickness, to obtain maximum use of the dynamic qualities of long stroke motors and a high force factor in order to bring all the precision and vivacity necessary for high fidelity, true to live sound.
CROSS-OVERS WITH VARIABLE SLOPES
The Cabasse development protocol combines numerous measurements in an anechoic room, combining on-axis and 360° results. It guarantees a perfect control of both the directivity index and the total radiated power all along the frequency bandwidth to match the SCS principles. It is a key process, together with listening sessions, in the development of the cross-over boards. The slopes can vary from 6 to 24 dB per octave for an optimal acoustical phasing, taking into account the influence of the external shape of the enclosure to optimise the qualities of the co-axial drive-units.
Specifications
Ways: 3
Drivers: BC10 coaxial midrange-Tweeter 10 cm ring – 2.7cm 12cm/4″ annulaire – dôme 2.7 cm/1″
Bass: 1 x 17cm/1″ MD18LB1 Duocell
Filter: 900 – 3 200 Hz
Frequency response: 65 – 23 000 Hz
Efficacité 1 W / 1 m: 89 dB
Nominal impedance: 8 ohms
Minimal impedance: 3,3 ohms
Power handling: 75 W
Peak power: 550 W
Dimensions: 40 x 23 x 28 cm/15,7″ x 9″ x 11″
Weight: 8.5 kg/18 lbs.
AMP 240 S
Ideal for Hi-Fi and TV and connected to the Cabasse Multi-room ecosystem !
Our connected amplifier allows you to listen to all your sources and music platforms in stereo and also integrates a TV socket, so you can experience every movie with incredible dynamics. The system is also inter-compatible with all other Cabasse connected systems for high-end sound throughout the home. Each user can group different systems and create zones to listen to all sources (Streaming, TV, Turntable etc..).
A sleek and stylish design with an intuitive LCD colour control screen
Available in a satin black aluminium finish, It is a compact stereo amplifier that fits into any interior. The front panel is equipped with an integrated touch-sensitive, upgradeable controller: a beautiful colour LCD video touchscreen with a volume control ring that allows you to easily change sources, add or change your favourite radio stations and adjust the volume. It also displays the album covers of the albums being played. Its interface will evolve with the system, as will the application.
A complete amplifier to enhance all passive speakers
And with DEAP* profile specially optimised for all bookshelf and floor-standing system such as Minorca Mc 40, Murano, Java MC40 and Murano Alto for optimum audio performance.
Evolving technologies
These technologies are constantly being improved and are automatically integrated over time by simple updates to the Cabasse StreamCONTROL application. The amplifier thus evolves, with the technological evolutions of Cabasse.
HIGH-RESOLUTION SOUND AT YOUR FINGERTIPS
The StreamCONTROL app is a platform that offers you a complete range of streaming services, compatible with voice assistants and numerous control options. Browse all your music, podcasts, radios and audiobooks in a single application.
Specifications
- Class D stereo amplifier
- Amplification x2
Channel:
2 x 215 W @ 4 Ohms
2 X 120 W @ 8 Ohms
Connectivity: Ethernet – Wi-Fi – Bluetooth – Optique SPDIF – Analog RCA – USB –TV plug – Output Sub plug headphones in front.
Supported formats:MP3 – AAC -WMA – AIFF – FLAC – ALAC Ogg- Vorbis – DSD 64/128 – WMA lossless
- DFE: Dynamic Fidelity Enhancer
- DEAP : Digital Enhancement of Acoustical Performances
- High Resolution Multi room
Dimension: L: 9,65 H: 3,82 P: 8,7 inches
Poids : 7,72 lbs
