Description
Enhance your audio and video entertainment experience with PowerQuest®.
AudioQuest’s power filtration removes more noise and distortion than most common power conditioners, dramatically improving your system’s performance. Unlike traditional surge protectors, non-sacrificial surge suppression prevents both high voltage and current from damaging your equipment, ensuring that your PowerQuest device wont fail over time.

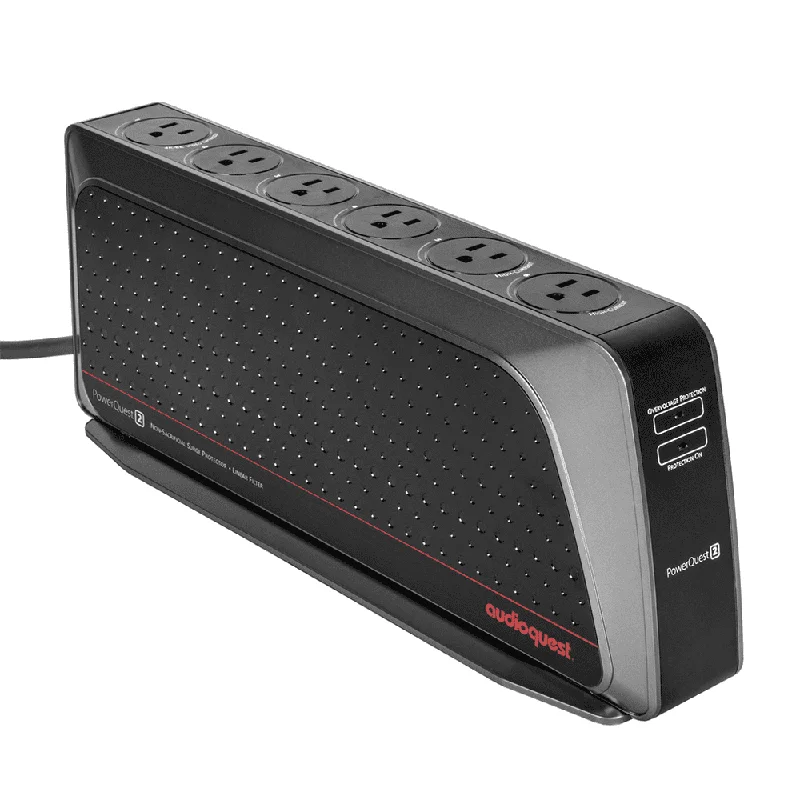

In addition, the PowerQuest PQ-2 features both a slim profile and a rugged floor-mounting stand that makes it ideal for mounting behind cabinets. Power cords plug straight down to the top-layer AC outlets, making installation trouble free. For those who prefer shelf mounting, the bottom stand can be easily removed. This allows easy access to all six EU/Schuko power outlets. Sending clean power to your A/V system was never so simple or convenient.
HOOK-UP GUIDE
The PQ-2 outlets have been engineered to ensure optimum performance from your home entertainment system. For the very best results, please use the hook-up recommendations below when connecting your system to the PQ-2.
OUTLET 1
4K/8K Video Optimised Linear Filter: Best when connected to video screens, televisions, projectors, or universal players.
OUTLETS 2, 3, 4
Linear Filter: Best when connected to audio/video source components, computers, modem, or router.
OUTLETS 5, 6
High-Current: Best when connected to soundbar, power amplifier, audio/video receiver, or subwoofer.
Features
EXTREME VOLTAGE SHUTDOWN
140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.
NON-SACRIFICIAL SURGE PROTECTION
Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a buildings AC electrical panel.
LINEAR FILTER
Differential-Mode Noise Dissipation: In excess of 22dB reduction from 30kHz-1GHz. Filter linearized for dynamic (rising) line impedance with frequency from 0.05 Ohms (source) and 10 to 50 Ohm load, (system current dependent).
4K/8K Video Optimised Outlet
In addition to the Linear Filter, this outlet offers additional Noise-Dissipation technology to maximise TV performance.
SIGNAL LINE PROTECTION: CABLE/SATELLITE
INPUT CURRENT MAXIMUM CAPACITY: 15 AMPS RMS
USB CHARGE CAPACITY: 2X PORTS TOTAL CAPACITY 3.4 AMPS
DIRECTIONALLY OPTIMIZED CONCENTRIC-GEOMETRY AUDIOQUEST POWER CORD
CONNECTED EQUIPMENT PROTECTION WARRANTY
6 x EU/Schuko Outlets
1 x 4K/8K Video Optimized Linear Filter Outlet
2 x High-Current Outlet
3 x Linear Filter Outlets
Dimensions: 15.47″ L x 3.15″ W x 6.02″ H
